PE423422A-Z

In Stock: 8,308

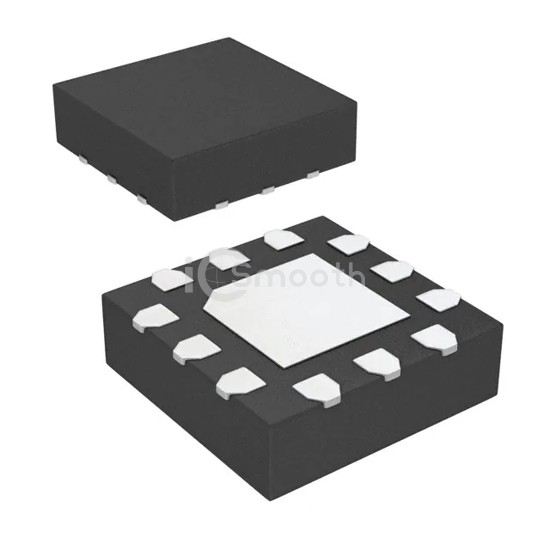

PE423422A-Z - pSemi - RF Switches
REF: PE423422A-Z pSemi
PE423422A-Z

pSemi

IC RF SWITCH SPDT 6GHZ 12QFN

PE423422A-Z is a RF Switches manufactured by pSemi. IC RF SWITCH SPDT 6GHZ 12QFN. Key specifications: operating temperature -40°C ~ 105°C, voltage - supply 2.3V ~ 5.5V, package / case 12-UFQFN Exposed Pad, frequency range 100MHz ~ 6GHz.

Datasheet Request a Quote

In Stock: 8,308

Tiered Pricing USD
1+ $1.8200 —
101+ $1.6600 -9%
1,000+ $1.5100 -17% BEST

Specifications

16 parameters
Product StatusActive
RF Type-
Topology-
CircuitSPDT
Frequency Range100MHz ~ 6GHz
Isolation42dB
Insertion Loss0.9dB
Test Frequency1GHz, 6GHz
P1dB34dBm
IIP373dBm
Features-
Impedance50Ohm
Voltage - Supply2.3V ~ 5.5V
Operating Temperature-40°C ~ 105°C
Package / Case12-UFQFN Exposed Pad
Supplier Device Package12-QFN (2x2)
