PE71S6401

In Stock: 5

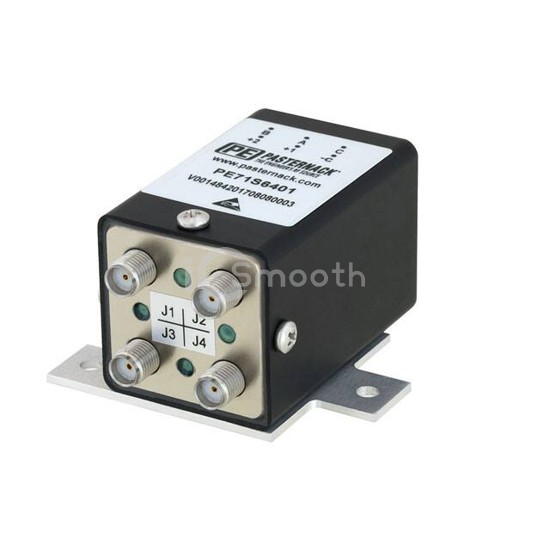

PE71S6401 - Pasternack - RF Switches
REF: PE71S6401 Pasternack
PE71S6401

Pasternack

TRANS LAT RELAY 28V DCTO18GH SMA

PE71S6401 is a RF Switches manufactured by Pasternack. TRANS LAT RELAY 28V DCTO18GH SMA. Key specifications: operating temperature -25°C ~ 70°C, voltage - supply 26V ~ 30V, package / case Module, SMA Connectors, frequency range DC ~ 18GHz.

Datasheet Request a Quote

In Stock: 5

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
Topology-
CircuitDPDT
Frequency RangeDC ~ 18GHz
Isolation70dB
Insertion Loss0.2dB
Test Frequency18GHz
P1dB-
IIP3-
Features-
Impedance50Ohm
Voltage - Supply26V ~ 30V
Operating Temperature-25°C ~ 70°C
Package / CaseModule, SMA Connectors
Supplier Device PackageModule
