PE71S6394

In Stock: 14

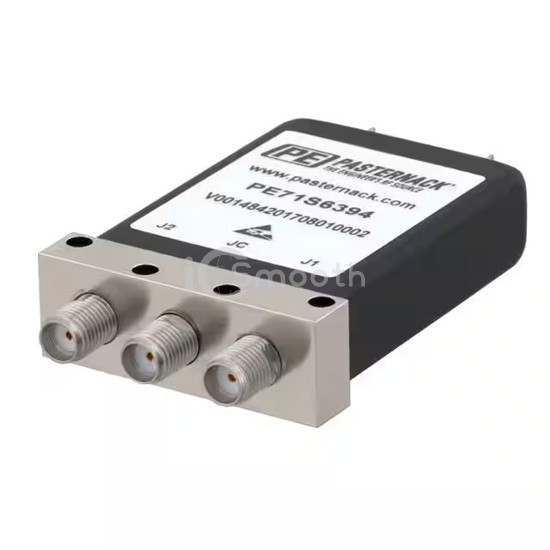

PE71S6394 - Pasternack - RF Switches
REF: PE71S6394 Pasternack
PE71S6394

Pasternack

SPDT LAT RELAY 12V DCTO18GHZ SMA

PE71S6394 is a RF Switches manufactured by Pasternack. SPDT LAT RELAY 12V DCTO18GHZ SMA. Key specifications: operating temperature -25°C ~ 70°C, voltage - supply 11V ~ 13V, package / case Module, SMA Connectors, frequency range DC ~ 18GHz.

Datasheet Request a Quote

In Stock: 14

Tiered Pricing USD
1+ $873.7400 —
10+ $771.4330 -12% BEST

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
Topology-
CircuitSPDT
Frequency RangeDC ~ 18GHz
Isolation80dB
Insertion Loss0.15dB
Test Frequency18GHz
P1dB-
IIP3-
Features-
Impedance50Ohm
Voltage - Supply11V ~ 13V
Operating Temperature-25°C ~ 70°C
Package / CaseModule, SMA Connectors
Supplier Device PackageModule
