PE71S6386

In Stock: 12

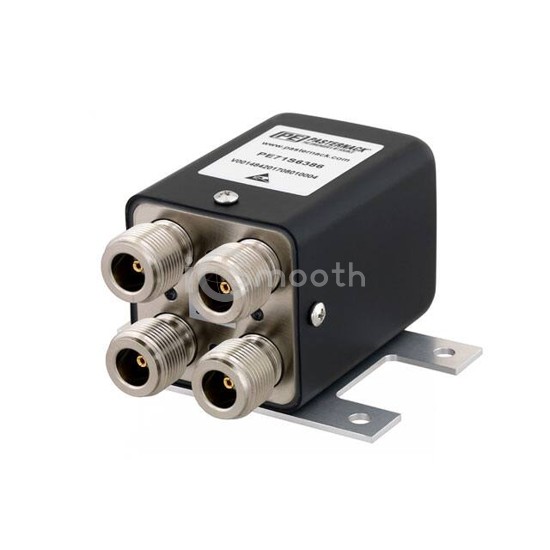

PE71S6386 - Pasternack - RF Switches
REF: PE71S6386 Pasternack
PE71S6386

Pasternack

TRANS FS RELAY TTL 28V DCTO12G N

PE71S6386 is a RF Switches manufactured by Pasternack. TRANS FS RELAY TTL 28V DCTO12G N. Key specifications: operating temperature -25°C ~ 70°C, voltage - supply 26V ~ 30V, package / case Module, frequency range DC ~ 12GHz.

Datasheet Request a Quote

In Stock: 12

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
Topology-
CircuitDPDT
Frequency RangeDC ~ 12GHz
Isolation80dB
Insertion Loss0.2dB
Test Frequency12GHz
P1dB-
IIP3-
Features-
Impedance50Ohm
Voltage - Supply26V ~ 30V
Operating Temperature-25°C ~ 70°C
Package / CaseModule
Supplier Device PackageModule
