PE71S6356

In Stock: 11

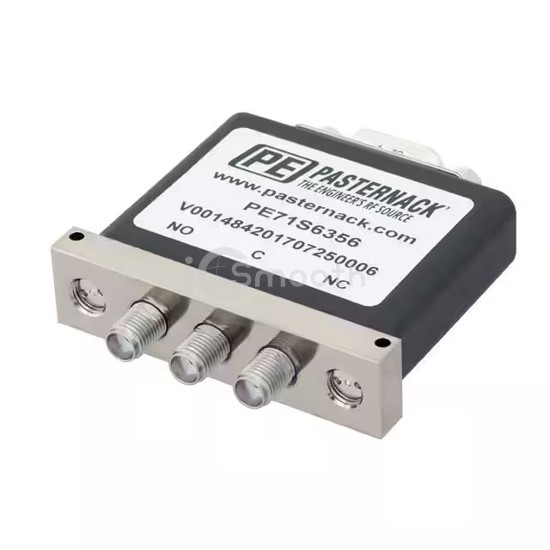

PE71S6356 - Pasternack - RF Switches
REF: PE71S6356 Pasternack
PE71S6356

Pasternack

SPDT FS RELAY TRM DCTO26.5GH SMA

PE71S6356 is a RF Switches manufactured by Pasternack. SPDT FS RELAY TRM DCTO26.5GH SMA. Key specifications: operating temperature -25°C ~ 70°C, voltage - supply 11V ~ 13V, package / case Module, SMA Connectors, frequency range DC ~ 26.5GHz.

Datasheet Request a Quote

In Stock: 11

Tiered Pricing USD
1+ $1,046.9700 —
10+ $927.8940 -11% BEST

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
Topology-
CircuitSPDT
Frequency RangeDC ~ 26.5GHz
Isolation80dB
Insertion Loss0.15dB
Test Frequency26.5GHz
P1dB-
IIP3-
Features-
Impedance50Ohm
Voltage - Supply11V ~ 13V
Operating Temperature-25°C ~ 70°C
Package / CaseModule, SMA Connectors
Supplier Device PackageModule
