PE15A3309

In Stock: 4

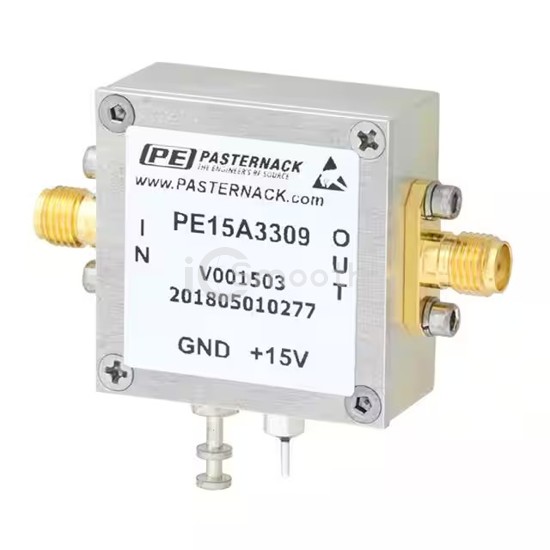

PE15A3309 - Pasternack - RF Amplifiers
REF: PE15A3309 Pasternack
PE15A3309

Pasternack

LNA 4 DB NF 1MHZ TO 3GHZ SMA

PE15A3309 is a RF Amplifiers manufactured by Pasternack. LNA 4 DB NF 1MHZ TO 3GHZ SMA. Key specifications: voltage - supply 14V ~ 16V, package / case Module, SMA Connectors, current - supply 110mA, frequency 1MHz ~ 3GHz.

Datasheet Request a Quote

In Stock: 4

Specifications

12 parameters
Product StatusActive
Frequency1MHz ~ 3GHz
P1dB22dBm
Gain21dB
Noise Figure4dB
RF TypeGeneral Purpose
Voltage - Supply14V ~ 16V
Current - Supply110mA
Test Frequency1MHz ~ 3GHz
Mounting Type-
Package / CaseModule, SMA Connectors
Supplier Device PackageModule
