SMF8.5A_R1_00001

In Stock: 2,980

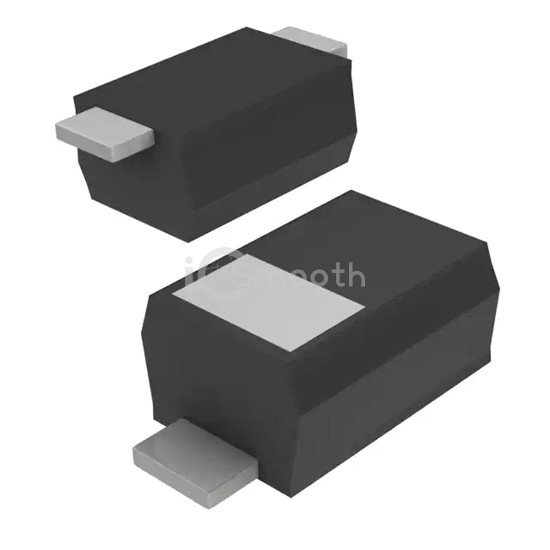

SMF8.5A_R1_00001 - Panjit International Inc. - TVS - Diodes
REF: SMF8.5A_R1_00001 Panjit International Inc.
SMF8.5A_R1_00001

Panjit International Inc.

SOD-123FL, TVS

SMF8.5A_R1_00001 is a TVS - Diodes manufactured by Panjit International Inc.. SOD-123FL, TVS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOD-123F.

Datasheet Request a Quote

In Stock: 2,980

Tiered Pricing USD
1+ $0.4500 —
10+ $0.2760 -39%
100+ $0.1743 -61%
500+ $0.1303 -71%
1,000+ $0.1160 -74% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)8.5V
Voltage - Breakdown (Min)9.4V
Voltage - Clamping (Max) @ Ipp14.4V
Current - Peak Pulse (10/1000µs)13.9A
Power - Peak Pulse200W
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOD-123F
Supplier Device PackageSOD-123FL
