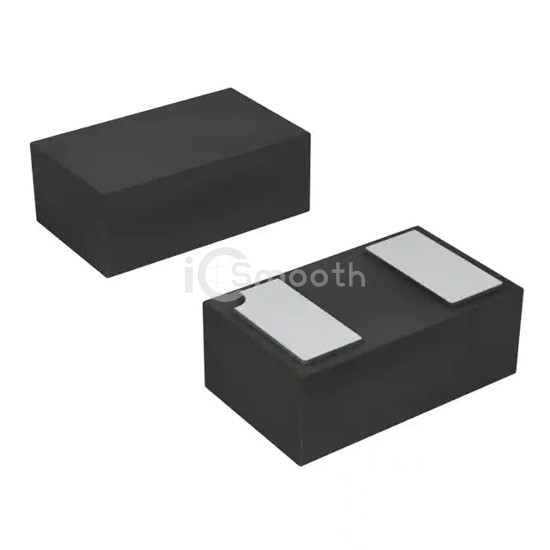

Name: PJSD05FN2_R1_00001
Brand: Panjit International Inc.
SKU: PJSD05FN2_R1_00001
Price: 0.03 USD
Availability: InStock

REF: PJSD05FN2_R1_00001 Panjit International Inc.

PJSD05FN2_R1_00001

Panjit International Inc.

SINGLE LINE TVS DIODE FOR ESD PR

PJSD05FN2_R1_00001 is a TVS - Diodes manufactured by Panjit International Inc.. SINGLE LINE TVS DIODE FOR ESD PR. Key specifications: mounting type Surface Mount, operating temperature -50°C ~ 150°C (TJ), package / case 0402 (1006 Metric).

Request a Quote

In Stock: 1,042

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	14V
Current - Peak Pulse (10/1000µs)	18A

Power - Peak Pulse	200W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	160pF @ 1MHz (Max)
Operating Temperature	-50°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	2-DFN (1x0.6)
