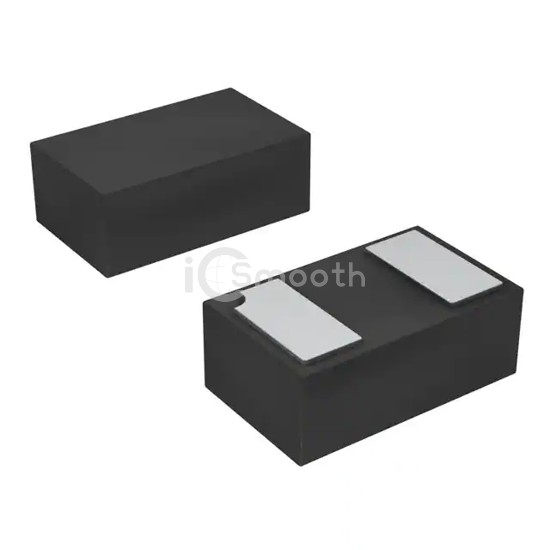

Name: PJE24VM5FN2_R1_00001
Brand: Panjit International Inc.
SKU: PJE24VM5FN2_R1_00001
Price: 0.27 USD
Availability: InStock

REF: PJE24VM5FN2_R1_00001 Panjit International Inc.

PJE24VM5FN2_R1_00001

Panjit International Inc.

ESD PROTECTION

PJE24VM5FN2_R1_00001 is a TVS - Diodes manufactured by Panjit International Inc.. ESD PROTECTION. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 0402 (1006 Metric).

Request a Quote

In Stock: 7,950

Tiered Pricing USD

1+ $0.2700 —

10+ $0.1630 -40%

100+ $0.1017 -62%

500+ $0.0748 -72%

1,000+ $0.0661 -76%

2,000+ $0.0587 -78% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	24V (Max)
Voltage - Breakdown (Min)	25V
Voltage - Clamping (Max) @ Ipp	40V
Current - Peak Pulse (10/1000µs)	1A (8/20µs)

Power - Peak Pulse	100W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	50pF @ 1MHz (Max)
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	2-DFN (1x0.6)
