Name: PEC3112M1Q_R1_00001
Brand: Panjit International Inc.
SKU: PEC3112M1Q_R1_00001
Price: 0.19 USD
Availability: InStock

REF: PEC3112M1Q_R1_00001 Panjit International Inc.

PEC3112M1Q_R1_00001

Panjit International Inc.

ESD PROTECTION

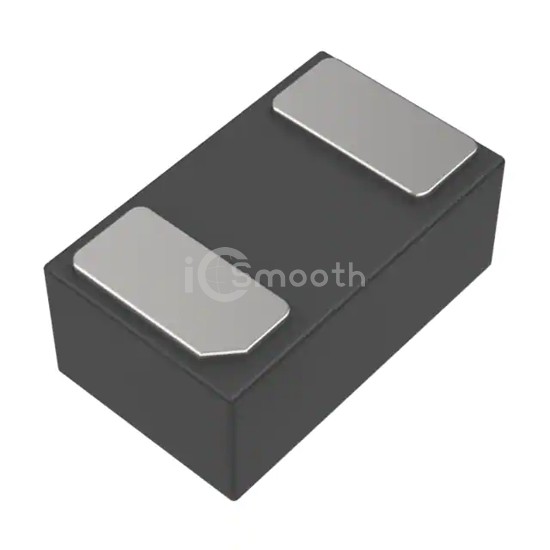

PEC3112M1Q_R1_00001 is a TVS - Diodes manufactured by Panjit International Inc.. ESD PROTECTION. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 2-UFDFN.

Request a Quote

In Stock: 7,431

Tiered Pricing USD

1+ $0.1900 —

10+ $0.1280 -33%

100+ $0.0860 -55%

500+ $0.0660 -65%

1,000+ $0.0500 -74%

2,000+ $0.0485 -74%

5,000+ $0.0470 -75% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	12V (Max)
Voltage - Breakdown (Min)	13V
Voltage - Clamping (Max) @ Ipp	25V
Current - Peak Pulse (10/1000µs)	2.5A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	10pF @ 1MHz (Max)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	2-UFDFN
Supplier Device Package	DFN1006-2
