Name: PE3620M1Q_R1_00001
Brand: Panjit International Inc.
SKU: PE3620M1Q_R1_00001
Price: 0.26 USD
Availability: InStock

REF: PE3620M1Q_R1_00001 Panjit International Inc.

PE3620M1Q_R1_00001

Panjit International Inc.

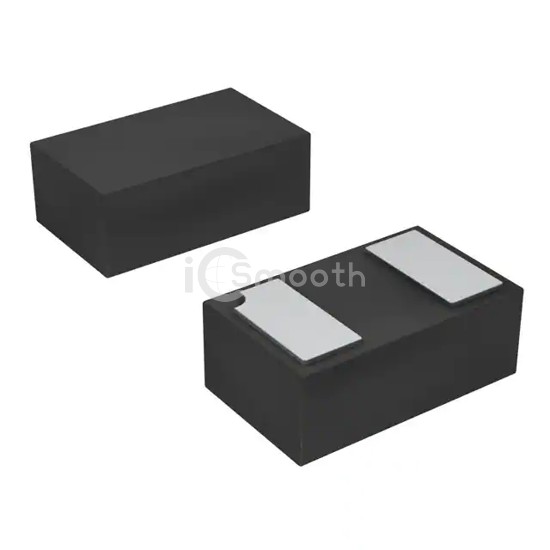

DFN1006-2L, TVS/ESD

PE3620M1Q_R1_00001 is a TVS - Diodes manufactured by Panjit International Inc.. DFN1006-2L, TVS/ESD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 0402 (1006 Metric).

Datasheet Request a Quote

In Stock: 9,880

Tiered Pricing USD

1+ $0.2600 —

10+ $0.1740 -33%

100+ $0.1170 -55%

500+ $0.0900 -65%

1,000+ $0.0670 -74%

2,000+ $0.0660 -75% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	20V (Max)
Voltage - Breakdown (Min)	22V
Voltage - Clamping (Max) @ Ipp	35V
Current - Peak Pulse (10/1000µs)	8A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	60pF @ 1MHz (Max)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	2-DFN (1x0.6)
