PE1805M4Q-AU_R1_000A1

In Stock: 6,162

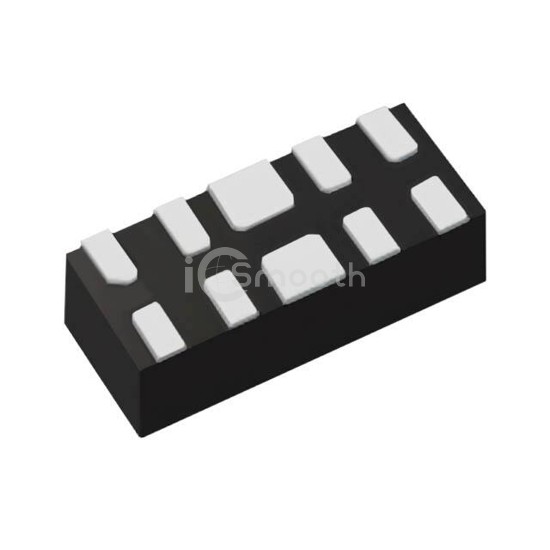

PE1805M4Q-AU_R1_000A1 - Panjit International Inc. - TVS - Diodes
REF: PE1805M4Q-AU_R1_000A1 Panjit International Inc.
PE1805M4Q-AU_R1_000A1

Panjit International Inc.

ULTRA LOW CAPACITANCE ESD PROTEC

PE1805M4Q-AU_R1_000A1 is a TVS - Diodes manufactured by Panjit International Inc.. ULTRA LOW CAPACITANCE ESD PROTEC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 10-UFDFN.

Request a Quote

In Stock: 6,162

Specifications

16 parameters
Product StatusActive
TypeSteering (Rail to Rail)
Unidirectional Channels4
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)5.5V (Max)
Voltage - Breakdown (Min)6.5V
Voltage - Clamping (Max) @ Ipp20V
Current - Peak Pulse (10/1000µs)5A (8/20µs)
Power - Peak Pulse-
Power Line ProtectionYes
ApplicationsAutomotive
Capacitance @ Frequency0.8pF @ 1MHz (Max)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case10-UFDFN
Supplier Device PackageDFN2510-10L
