P6SMB36A-AU_R1_000A1

In Stock: 3,242

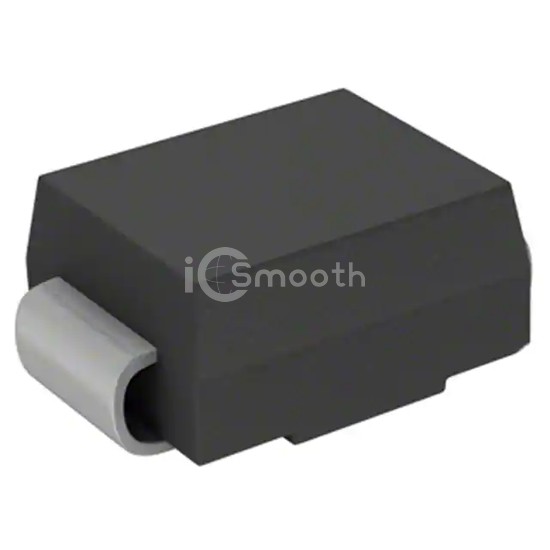

P6SMB36A-AU_R1_000A1 - Panjit International Inc. - TVS - Diodes
REF: P6SMB36A-AU_R1_000A1 Panjit International Inc.
P6SMB36A-AU_R1_000A1

Panjit International Inc.

SURFACE MOUNT TRANSIENT VOLTAGE

P6SMB36A-AU_R1_000A1 is a TVS - Diodes manufactured by Panjit International Inc.. SURFACE MOUNT TRANSIENT VOLTAGE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AA, SMB.

Datasheet Request a Quote

In Stock: 3,242

Tiered Pricing USD
13,600+ $0.1155 —
27,200+ $0.1072 -7%
40,800+ $0.1029 -11%
68,000+ $0.1013 -12% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)30.8V
Voltage - Breakdown (Min)34.2V
Voltage - Clamping (Max) @ Ipp49.9V
Current - Peak Pulse (10/1000µs)12A
Power - Peak Pulse600W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AA, SMB
Supplier Device PackageSMB (DO-214AA)
