P6SMB15A-AU_R1_000A1

In Stock: 5,025

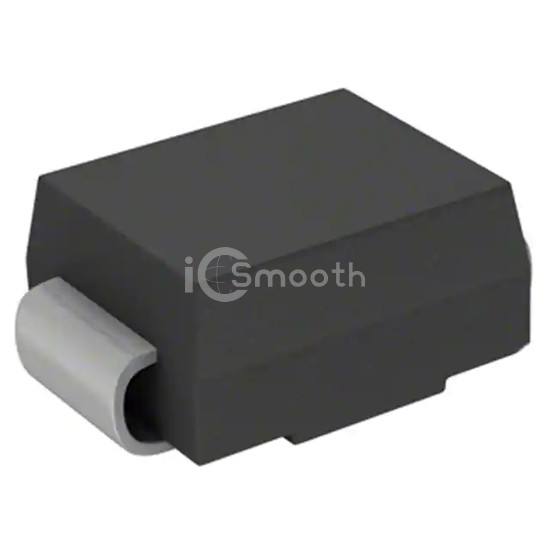

P6SMB15A-AU_R1_000A1 - Panjit International Inc. - TVS - Diodes
REF: P6SMB15A-AU_R1_000A1 Panjit International Inc.
P6SMB15A-AU_R1_000A1

Panjit International Inc.

SURFACE MOUNT TRANSIENT VOLTAGE

P6SMB15A-AU_R1_000A1 is a TVS - Diodes manufactured by Panjit International Inc.. SURFACE MOUNT TRANSIENT VOLTAGE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AA, SMB.

Datasheet Request a Quote

In Stock: 5,025

Tiered Pricing USD
17,600+ $0.1101 —
35,200+ $0.1024 -7%
52,800+ $0.0990 -10% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)12.8V
Voltage - Breakdown (Min)14.3V
Voltage - Clamping (Max) @ Ipp21.2V
Current - Peak Pulse (10/1000µs)28A
Power - Peak Pulse600W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AA, SMB
Supplier Device PackageSMB (DO-214AA)
