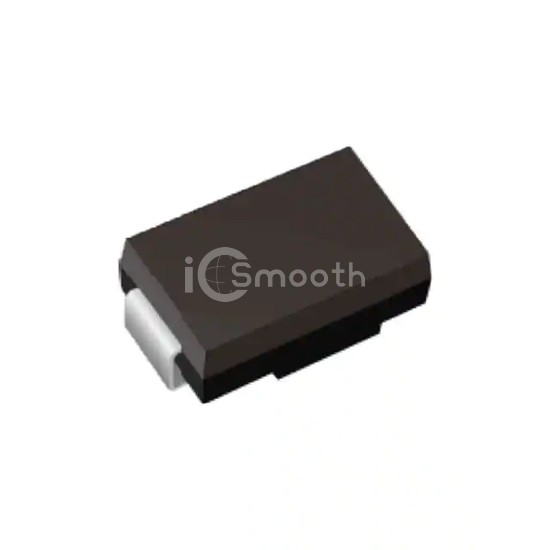

Name: P4SMAJ70A_R1_00001
Brand: Panjit International Inc.
SKU: P4SMAJ70A_R1_00001
Price: 0.06 USD
Availability: InStock

REF: P4SMAJ70A_R1_00001 Panjit International Inc.

P4SMAJ70A_R1_00001

Panjit International Inc.

SMA, TVS

P4SMAJ70A_R1_00001 is a TVS - Diodes manufactured by Panjit International Inc.. SMA, TVS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AC, SMA.

Datasheet Request a Quote

In Stock: 1,790

Tiered Pricing USD

1,800+ $0.0616 —

3,600+ $0.0550 -11%

5,400+ $0.0517 -16%

9,000+ $0.0480 -22%

12,600+ $0.0457 -26%

18,000+ $0.0436 -29%

45,000+ $0.0388 -37%

90,000+ $0.0359 -42%

180,000+ $0.0334 -46% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	70V
Voltage - Breakdown (Min)	77.8V
Voltage - Clamping (Max) @ Ipp	113V
Current - Peak Pulse (10/1000µs)	3.5A

Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	SMA (DO-214AC)
