1N4748A_R2_00001

In Stock: 7,331

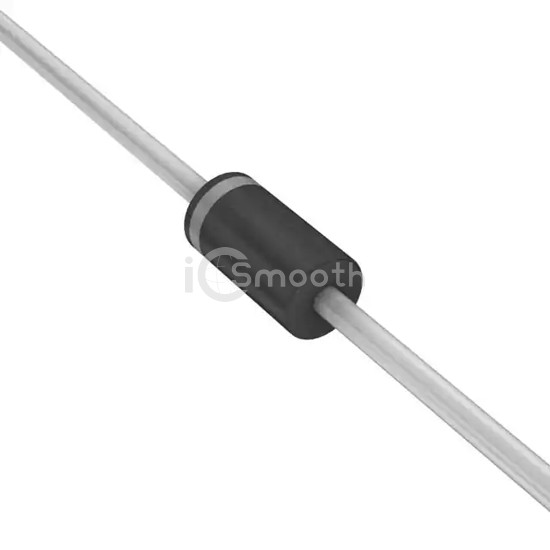

1N4748A_R2_00001 - Panjit International Inc. - Diodes - Zener - Single
REF: 1N4748A_R2_00001 Panjit International Inc.
1N4748A_R2_00001

Panjit International Inc.

SILICON ZENER DIODE

1N4748A_R2_00001 is a Diodes - Zener - Single manufactured by Panjit International Inc.. SILICON ZENER DIODE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case DO-204AL, DO-41, Axial, power - max 1 W.

Datasheet Request a Quote

In Stock: 7,331

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)22 V
Tolerance±5%
Power - Max1 W
Impedance (Max) (Zzt)23 Ohms
Current - Reverse Leakage @ Vr100 nA @ 16.7 V
Voltage - Forward (Vf) (Max) @ If-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseDO-204AL, DO-41, Axial
Supplier Device PackageDO-41
