1.5SMC22A_R1_00001

In Stock: 800

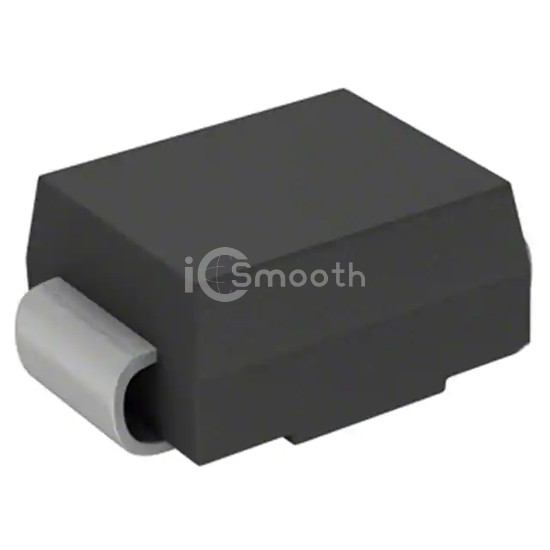

1.5SMC22A_R1_00001 - Panjit International Inc. - TVS - Diodes
REF: 1.5SMC22A_R1_00001 Panjit International Inc.
1.5SMC22A_R1_00001

Panjit International Inc.

GLASS PASSIVATED JUNCTION TRANSI

1.5SMC22A_R1_00001 is a TVS - Diodes manufactured by Panjit International Inc.. GLASS PASSIVATED JUNCTION TRANSI. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 800

Tiered Pricing USD
1+ $1.5200 —
10+ $0.9620 -37%
100+ $0.6403 -58% BEST

Specifications

16 parameters
Product StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)18.8V
Voltage - Breakdown (Min)20.9V
Voltage - Clamping (Max) @ Ipp30.6V
Current - Peak Pulse (10/1000µs)49A
Power - Peak Pulse1500W (1.5kW)
Power Line ProtectionNo
ApplicationsGeneral Purpose
Capacitance @ Frequency-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AB, SMC
Supplier Device PackageSMC (DO-214AB)
