UP0KG8D00L

In Stock: 4,662

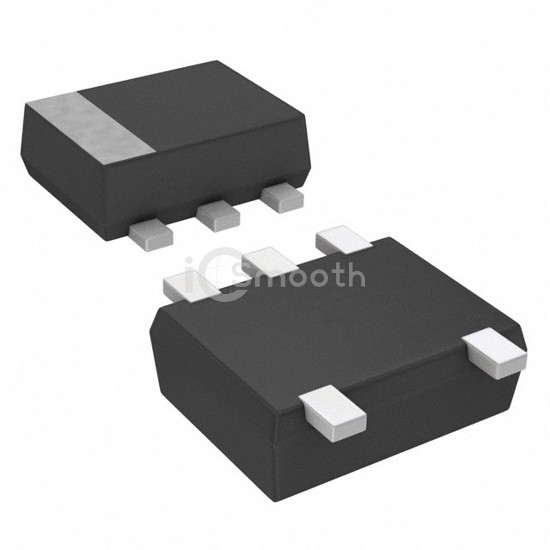

UP0KG8D00L - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: UP0KG8D00L Panasonic Electronic Components
UP0KG8D00L

Panasonic Electronic Components

TRANS PREBIAS PNP 0.125W SSMINI5

UP0KG8D00L is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Panasonic Electronic Components. TRANS PREBIAS PNP 0.125W SSMINI5. Key specifications: mounting type Surface Mount, package / case SOT-665, current - collector (ic) (max) 80 mA, power - max 125 mW.

Datasheet Request a Quote

In Stock: 4,662

Specifications

14 parameters
Product StatusObsolete
Transistor TypePNP - Pre-Biased + Diode
Current - Collector (Ic) (Max)80 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)47 kOhms
Resistor - Emitter Base (R2)47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition80 MHz
Power - Max125 mW
Mounting TypeSurface Mount
Package / CaseSOT-665
Supplier Device PackageSSMini5-F2
