UNR422400A

In Stock: 7,483

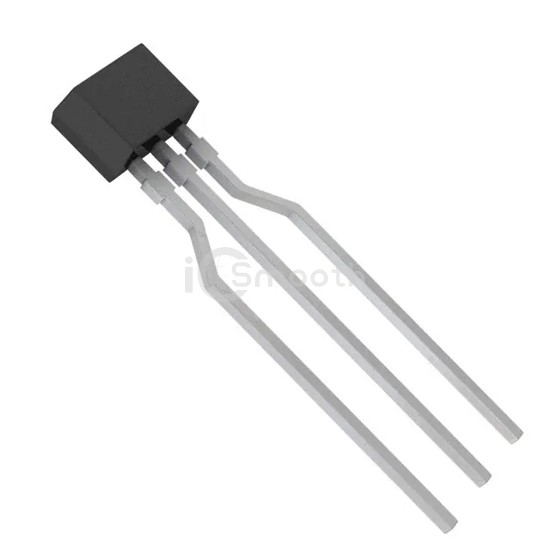

UNR422400A - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: UNR422400A Panasonic Electronic Components
UNR422400A

Panasonic Electronic Components

TRANS PREBIAS NPN 300MW NS-B1

UNR422400A is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Panasonic Electronic Components. TRANS PREBIAS NPN 300MW NS-B1. Key specifications: mounting type Through Hole, package / case 3-SIP, current - collector (ic) (max) 500 mA, power - max 300 mW.

Datasheet Request a Quote

In Stock: 7,483

Specifications

14 parameters
Product StatusObsolete
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)500 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)2.2 kOhms
Resistor - Emitter Base (R2)10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 100mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 5mA, 100mA
Current - Collector Cutoff (Max)1µA
Frequency - Transition200 MHz
Power - Max300 mW
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageNS-B1
