UNR421300A

In Stock: 8,823

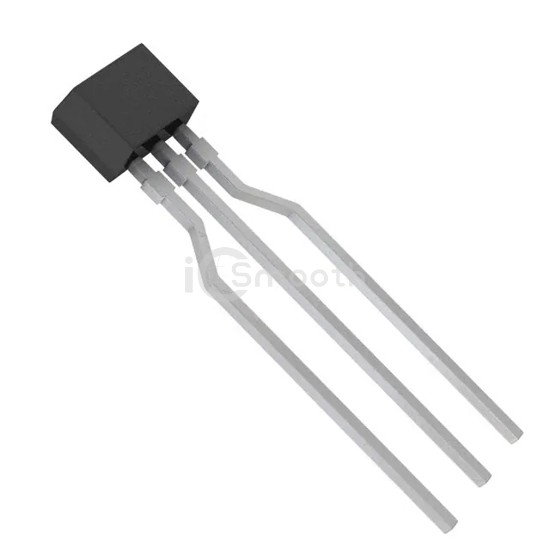

UNR421300A - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: UNR421300A Panasonic Electronic Components
UNR421300A

Panasonic Electronic Components

TRANS PREBIAS NPN 300MW NS-B1

UNR421300A is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Panasonic Electronic Components. TRANS PREBIAS NPN 300MW NS-B1. Key specifications: mounting type Through Hole, package / case 3-SIP, current - collector (ic) (max) 100 mA, power - max 300 mW.

Datasheet Request a Quote

In Stock: 8,823

Specifications

14 parameters
Product StatusObsolete
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)47 kOhms
Resistor - Emitter Base (R2)47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition150 MHz
Power - Max300 mW
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageNS-B1
