NP063D300A

In Stock: 3,659

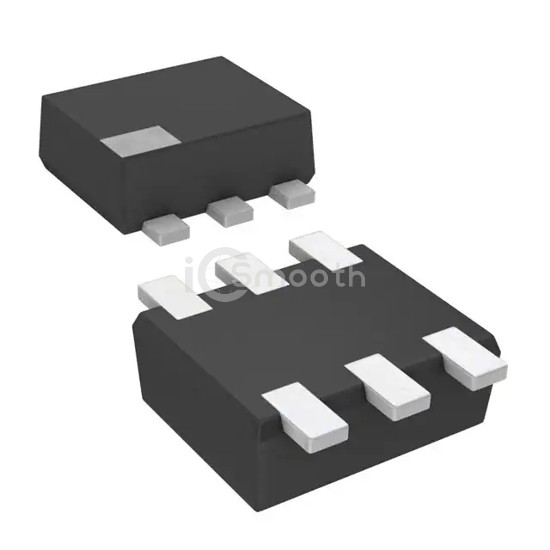

NP063D300A - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Arrays, Pre-Biased
REF: NP063D300A Panasonic Electronic Components
NP063D300A

Panasonic Electronic Components

TRANS PREBIAS NPN/PNP SSSMINI6

NP063D300A is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by Panasonic Electronic Components. TRANS PREBIAS NPN/PNP SSSMINI6. Key specifications: mounting type Surface Mount, package / case SOT-963, current - collector (ic) (max) 80mA, power - max 125mW.

Datasheet Request a Quote

In Stock: 3,659

Specifications

14 parameters
Product StatusObsolete
Transistor Type1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)80mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)10kOhms, 47kOhms
Resistor - Emitter Base (R2)-
DC Current Gain (hFE) (Min) @ Ic, Vce160 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition150MHz, 80MHz
Power - Max125mW
Mounting TypeSurface Mount
Package / CaseSOT-963
Supplier Device PackageSSSMini6-F1
