MAZS0560ML

In Stock: 3,893

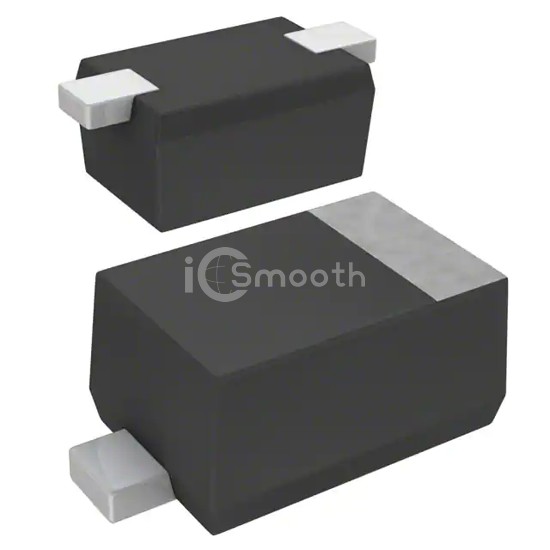

MAZS0560ML - Panasonic Electronic Components - Diodes - Zener - Single
REF: MAZS0560ML Panasonic Electronic Components
MAZS0560ML

Panasonic Electronic Components

DIODE ZENER 5.6V 150MW SSMINI2

MAZS0560ML is a Diodes - Zener - Single manufactured by Panasonic Electronic Components. DIODE ZENER 5.6V 150MW SSMINI2. Key specifications: mounting type Surface Mount, package / case SC-79, SOD-523, power - max 150 mW, tolerance ±3%.

Datasheet Request a Quote

In Stock: 3,893

Specifications

11 parameters
Product StatusObsolete
Voltage - Zener (Nom) (Vz)5.6 V
Tolerance±3%
Power - Max150 mW
Impedance (Max) (Zzt)40 Ohms
Current - Reverse Leakage @ Vr500 nA @ 2.5 V
Voltage - Forward (Vf) (Max) @ If1 V @ 10 mA
Operating Temperature-
Mounting TypeSurface Mount
Package / CaseSC-79, SOD-523
Supplier Device PackageSSMini2-F1
