MAZ80560ML

In Stock: 3,166

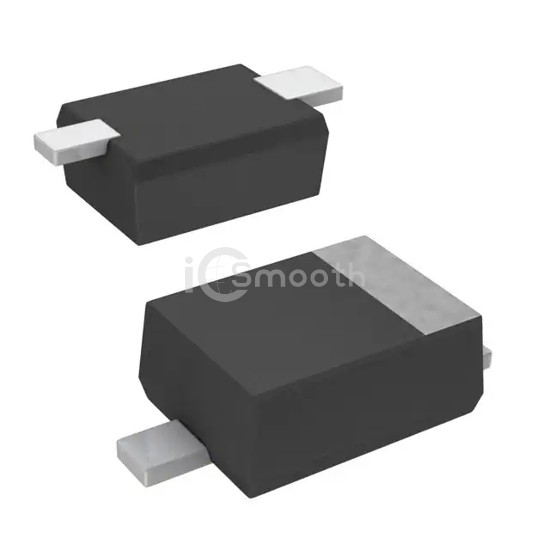

MAZ80560ML - Panasonic Electronic Components - Diodes - Zener - Single
REF: MAZ80560ML Panasonic Electronic Components
MAZ80560ML

Panasonic Electronic Components

DIODE ZENER 5.6V 150MW SMINI2

MAZ80560ML is a Diodes - Zener - Single manufactured by Panasonic Electronic Components. DIODE ZENER 5.6V 150MW SMINI2. Key specifications: mounting type Surface Mount, package / case SC-90, SOD-323F, power - max 150 mW, tolerance ±6%.

Datasheet Request a Quote

In Stock: 3,166

Specifications

11 parameters
Product StatusObsolete
Voltage - Zener (Nom) (Vz)5.6 V
Tolerance±6%
Power - Max150 mW
Impedance (Max) (Zzt)40 Ohms
Current - Reverse Leakage @ Vr500 nA @ 2.5 V
Voltage - Forward (Vf) (Max) @ If1 V @ 10 mA
Operating Temperature-
Mounting TypeSurface Mount
Package / CaseSC-90, SOD-323F
Supplier Device PackageSMini2-F1
