MAZ20560A0G

In Stock: 1,035

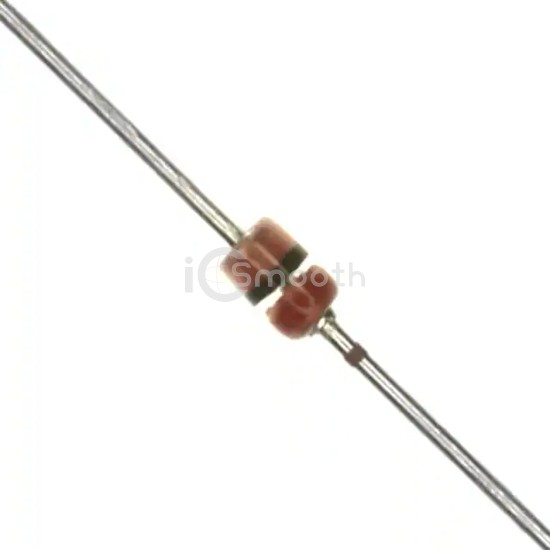

MAZ20560A0G - Panasonic Electronic Components - Diodes - Zener - Single
REF: MAZ20560A0G Panasonic Electronic Components
MAZ20560A0G

Panasonic Electronic Components

DIODE ZENER 5.6V 1W DO41

MAZ20560A0G is a Diodes - Zener - Single manufactured by Panasonic Electronic Components. DIODE ZENER 5.6V 1W DO41. Key specifications: mounting type Through Hole, package / case DO-204AL, DO-41, Axial, power - max 1 W, tolerance ±7%.

Datasheet Request a Quote

In Stock: 1,035

Specifications

11 parameters
Product StatusObsolete
Voltage - Zener (Nom) (Vz)5.6 V
Tolerance±7%
Power - Max1 W
Impedance (Max) (Zzt)8 Ohms
Current - Reverse Leakage @ Vr20 µA @ 2 V
Voltage - Forward (Vf) (Max) @ If1 V @ 200 mA
Operating Temperature-
Mounting TypeThrough Hole
Package / CaseDO-204AL, DO-41, Axial
Supplier Device PackageDO41-A1
