Panasonic Electronic Components

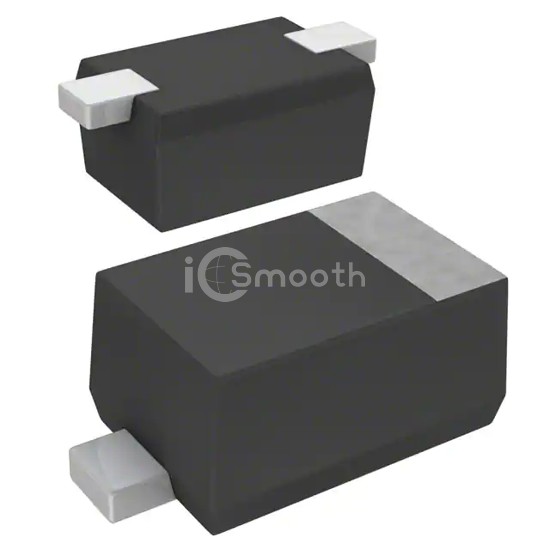

DIODE SCHOTTKY 20V 500MA SMINI2
MA2ZD1800L is a Diodes - Rectifiers - Single manufactured by Panasonic Electronic Components. DIODE SCHOTTKY 20V 500MA SMINI2. Key specifications: mounting type Surface Mount, package / case SC-90, SOD-323F.
In Stock: 9,661
| Product Status | Obsolete |
|---|---|
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 420 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 7 ns |
| Current - Reverse Leakage @ Vr | 200 µA @ 20 V |
|---|---|
| Capacitance @ Vr, F | 100pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-90, SOD-323F |
| Supplier Device Package | SMini2-F1 |
| Operating Temperature - Junction | 125°C (Max) |
