Panasonic Electronic Components

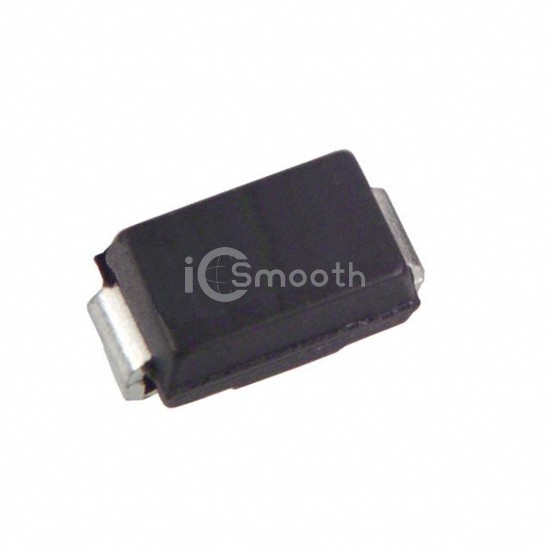

DIODE SCHOTTKY 40V 1A NMINIP2
MA2Q73600L is a Diodes - Rectifiers - Single manufactured by Panasonic Electronic Components. DIODE SCHOTTKY 40V 1A NMINIP2. Key specifications: mounting type Surface Mount, package / case DO-214BA.
In Stock: 4,774
| Product Status | Obsolete |
|---|---|
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns |
| Current - Reverse Leakage @ Vr | 2 mA @ 40 V |
|---|---|
| Capacitance @ Vr, F | 50pF @ 10V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214BA |
| Supplier Device Package | NMiniP2-J1 |
| Operating Temperature - Junction | -40°C ~ 125°C |
