Panasonic Electronic Components

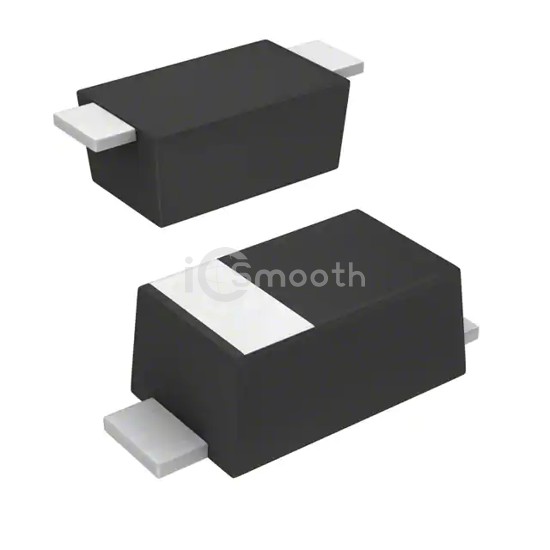

DIODE SCHOTTKY 30V 1.5A MINI2
MA22D2800L is a Diodes - Rectifiers - Single manufactured by Panasonic Electronic Components. DIODE SCHOTTKY 30V 1.5A MINI2. Key specifications: mounting type Surface Mount, package / case SOD-123F.
In Stock: 5,115
| Product Status | Obsolete |
|---|---|
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 1.5A |
| Voltage - Forward (Vf) (Max) @ If | 460 mV @ 1.5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 13 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 30 V |
|---|---|
| Capacitance @ Vr, F | 50pF @ 10V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123F |
| Supplier Device Package | Mini2-F1 |
| Operating Temperature - Junction | 150°C (Max) |
