Panasonic Electronic Components
DIODE SCHOTTKY 25V 1A MINI2

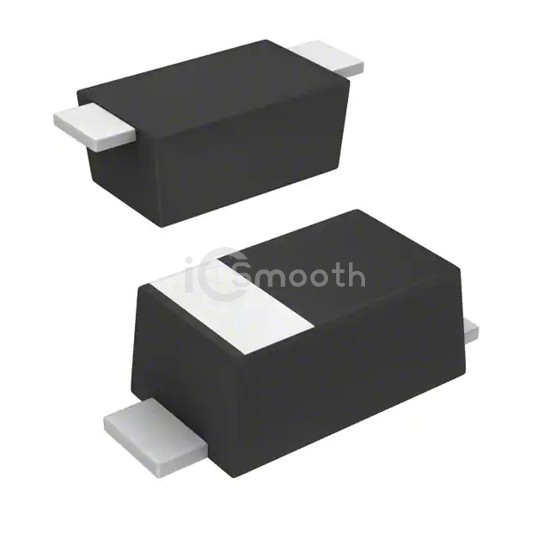

MA22D2300L is a Diodes - Rectifiers - Single manufactured by Panasonic Electronic Components. DIODE SCHOTTKY 25V 1A MINI2. Key specifications: mounting type Surface Mount, package / case SOD-123F.
In Stock: 3,896
| Product Status | Obsolete |
|---|---|
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 25 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 530 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 40 µA @ 20 V |
|---|---|
| Capacitance @ Vr, F | 45pF @ 10V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123F |
| Supplier Device Package | Mini2-F1 |
| Operating Temperature - Junction | 150°C (Max) |
