Panasonic Electronic Components

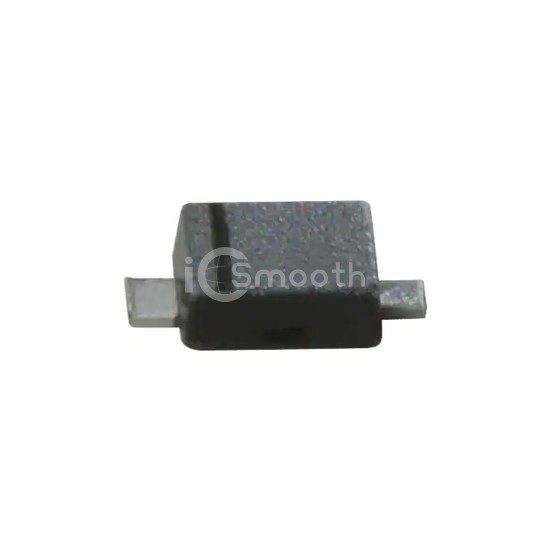

DIODE SCHOTTKY 30V 1A SMINI2
MA21D3800L is a Diodes - Rectifiers - Single manufactured by Panasonic Electronic Components. DIODE SCHOTTKY 30V 1A SMINI2. Key specifications: mounting type Surface Mount, package / case 2-SMD, Flat Lead.
In Stock: 2,052
| Product Status | Obsolete |
|---|---|
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 420 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 13 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 30 V |
|---|---|
| Capacitance @ Vr, F | 40pF @ 10V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Flat Lead |
| Supplier Device Package | SMini2-F2 |
| Operating Temperature - Junction | 125°C (Max) |
