Name: DY2L3A3C0L1
Brand: Panasonic Electronic Components
SKU: DY2L3A3C0L1
Price: 0.15 USD
Availability: InStock

REF: DY2L3A3C0L1 Panasonic Electronic Components

DY2L3A3C0L1

Panasonic Electronic Components

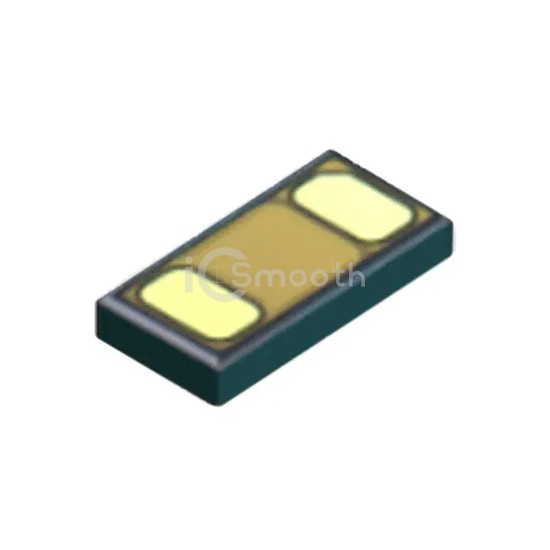

TVS DIODE 3.3VWM 11VC 0201

DY2L3A3C0L1 is a TVS - Diodes manufactured by Panasonic Electronic Components. TVS DIODE 3.3VWM 11VC 0201. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 7,724

Tiered Pricing USD

1,000+ $0.1497 —

2,000+ $0.1365 -9%

3,000+ $0.1297 -13%

5,000+ $0.1220 -19%

7,000+ $0.1174 -22%

10,000+ $0.1129 -25%

25,000+ $0.1043 -30% BEST

Specifications

16 parameters

Product Status	Discontinued at Digi-Key
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	5.86V
Voltage - Clamping (Max) @ Ipp	11V
Current - Peak Pulse (10/1000µs)	2.4A (8/20µs)

Power - Peak Pulse	22W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	7.5pF @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201 (0603 Metric)
