DRC9A14E0L

In Stock: 6,668

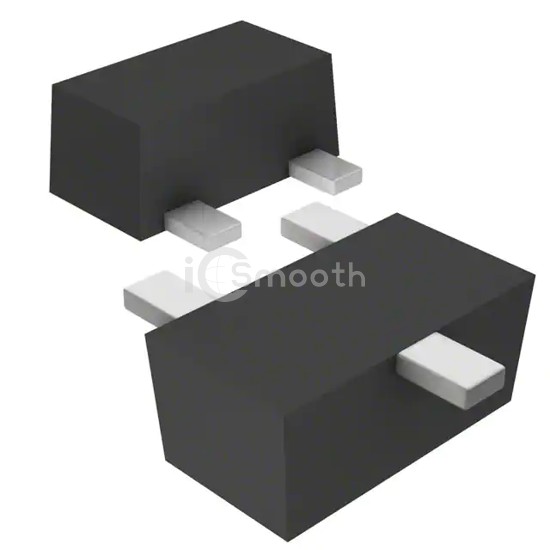

DRC9A14E0L - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: DRC9A14E0L Panasonic Electronic Components
DRC9A14E0L

Panasonic Electronic Components

TRANS PREBIAS NPN 0.125W SSMINI3

DRC9A14E0L is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Panasonic Electronic Components. TRANS PREBIAS NPN 0.125W SSMINI3. Key specifications: mounting type Surface Mount, package / case SC-89, SOT-490, current - collector (ic) (max) 80 mA, power - max 125 mW.

Request a Quote

In Stock: 6,668

Specifications

14 parameters
Product StatusDiscontinued at Digi-Key
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)80 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)10 kOhms
Resistor - Emitter Base (R2)10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce35 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 500µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max125 mW
Mounting TypeSurface Mount
Package / CaseSC-89, SOT-490
Supplier Device PackageSSMini3-F3-B
