DRC9152Z0L

In Stock: 2,314

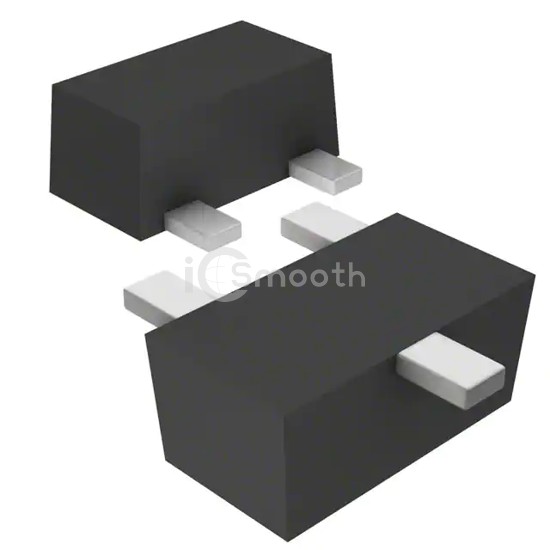

DRC9152Z0L - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: DRC9152Z0L Panasonic Electronic Components
DRC9152Z0L

Panasonic Electronic Components

TRANS PREBIAS NPN 125MW SSMINI3

DRC9152Z0L is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Panasonic Electronic Components. TRANS PREBIAS NPN 125MW SSMINI3. Key specifications: mounting type Surface Mount, package / case SC-89, SOT-490, current - collector (ic) (max) 100 mA, power - max 125 mW.

Datasheet Request a Quote

In Stock: 2,314

Specifications

14 parameters
Product StatusDiscontinued at Digi-Key
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)510 Ohms
Resistor - Emitter Base (R2)5.1 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce20 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 500µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max125 mW
Mounting TypeSurface Mount
Package / CaseSC-89, SOT-490
Supplier Device PackageSSMini3-F3-B
