DRA9A24E0L

In Stock: 6,201

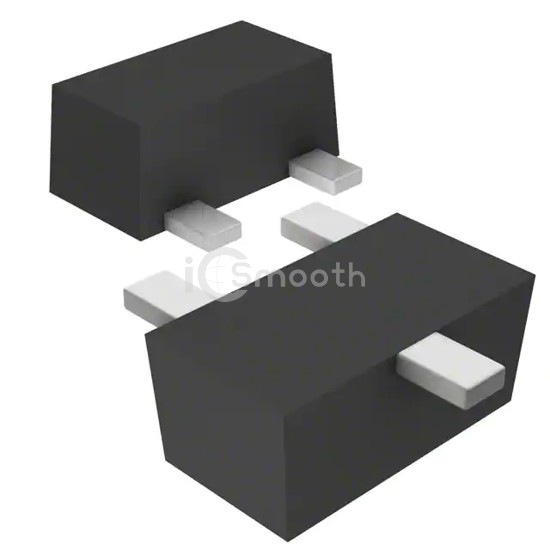

DRA9A24E0L - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: DRA9A24E0L Panasonic Electronic Components
DRA9A24E0L

Panasonic Electronic Components

TRANS PREBIAS PNP 0.125W SSMINI3

DRA9A24E0L is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Panasonic Electronic Components. TRANS PREBIAS PNP 0.125W SSMINI3. Key specifications: mounting type Surface Mount, package / case SC-89, SOT-490, current - collector (ic) (max) 80 mA, power - max 125 mW.

Datasheet Request a Quote

In Stock: 6,201

Specifications

14 parameters
Product StatusDiscontinued at Digi-Key
Transistor TypePNP - Pre-Biased
Current - Collector (Ic) (Max)80 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)22 kOhms
Resistor - Emitter Base (R2)22 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 500µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max125 mW
Mounting TypeSurface Mount
Package / CaseSC-89, SOT-490
Supplier Device PackageSSMini3-F3-B
