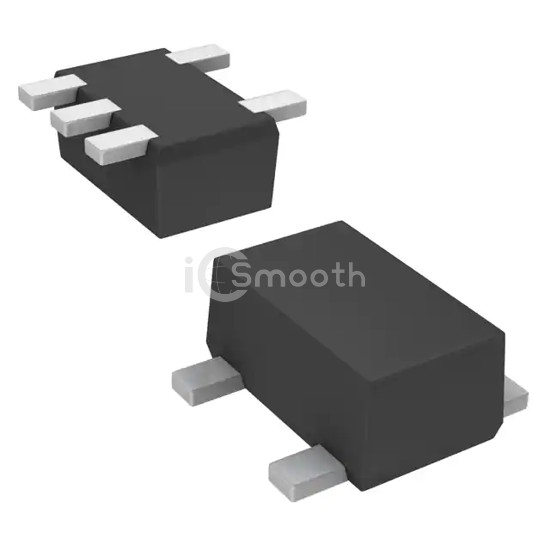

DMG563H10R

TRANS PREBIAS NPN/PNP SMINI5

DMG563H10R is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by Panasonic Electronic Components. TRANS PREBIAS NPN/PNP SMINI5. Key specifications: mounting type Surface Mount, package / case 6-SMD (5 Leads), Flat Lead, current - collector (ic) (max) 100mA, power - max 150mW.

Request a Quote

In Stock: 7,452

Specifications

14 parameters

Product Status	Discontinued at Digi-Key
Transistor Type	1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Resistor - Base (R1)	47kOhms, 4.7kOhms
Resistor - Emitter Base (R2)	47kOhms, 10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 5mA, 10V / 30 @ 5mA, 10V

Vce Saturation (Max) @ Ib, Ic	250mV @ 500µA, 10mA
Current - Collector Cutoff (Max)	500nA
Frequency - Transition	-
Power - Max	150mW
Mounting Type	Surface Mount
Package / Case	6-SMD (5 Leads), Flat Lead
Supplier Device Package	SMini5-F3-B
