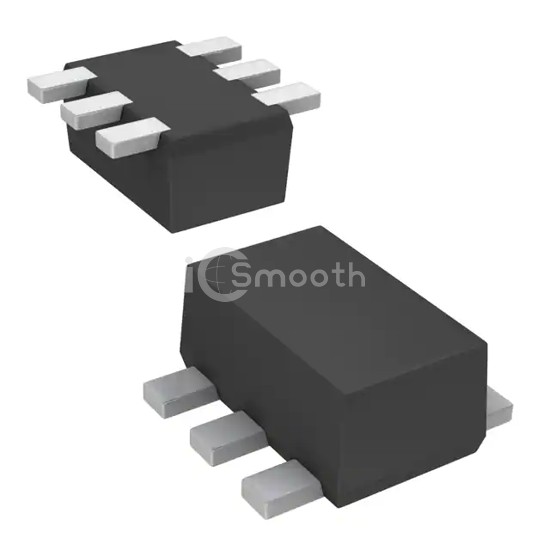

DME914C10R

TRANS NPN PREBIAS/PNP SSMINI6

DME914C10R is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by Panasonic Electronic Components. TRANS NPN PREBIAS/PNP SSMINI6. Key specifications: mounting type Surface Mount, package / case SOT-563, SOT-666, current - collector (ic) (max) 100mA, 500mA, power - max 125mW.

Request a Quote

In Stock: 7,256

Specifications

14 parameters

Product Status	Discontinued at Digi-Key
Transistor Type	1 NPN Pre-Biased, 1 PNP
Current - Collector (Ic) (Max)	100mA, 500mA
Voltage - Collector Emitter Breakdown (Max)	50V, 12V
Resistor - Base (R1)	4.7kOhms
Resistor - Emitter Base (R2)	47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 5mA, 10V / 270 @ 10mA, 2V

Vce Saturation (Max) @ Ib, Ic	250mV @ 500µA, 10mA / 250mV @ 10mA, 200mA
Current - Collector Cutoff (Max)	500nA
Frequency - Transition	300MHz
Power - Max	125mW
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SSMini6-F3-B
