DMC961020R

In Stock: 5,456

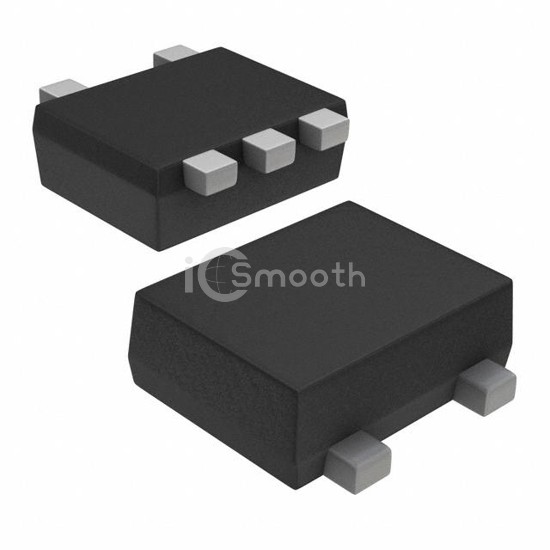

DMC961020R - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Arrays, Pre-Biased
REF: DMC961020R Panasonic Electronic Components
DMC961020R

Panasonic Electronic Components

TRANS PREBIAS DUAL NPN SSMINI5

DMC961020R is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by Panasonic Electronic Components. TRANS PREBIAS DUAL NPN SSMINI5. Key specifications: mounting type Surface Mount, package / case SOT-665, current - collector (ic) (max) 100mA, power - max 125mW.

Datasheet Request a Quote

In Stock: 5,456

Specifications

14 parameters
Product StatusDiscontinued at Digi-Key
Transistor Type2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1)22kOhms
Resistor - Emitter Base (R2)22kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 500µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition-
Power - Max125mW
Mounting TypeSurface Mount
Package / CaseSOT-665
Supplier Device PackageSSMini5-F4-B
