Panasonic Electronic Components
CSP SCHOTTKY BARRIER DIODE

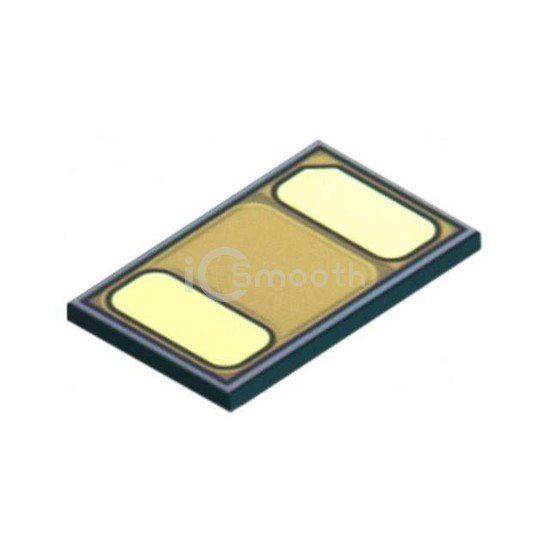

DB2G60800L1 is a Diodes - Rectifiers - Single manufactured by Panasonic Electronic Components. CSP SCHOTTKY BARRIER DIODE. Key specifications: mounting type Surface Mount, package / case 0402 (1005 Metric).
In Stock: 2,734
| Product Status | Discontinued at Digi-Key |
|---|---|
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 680 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 6.6 ns |
| Current - Reverse Leakage @ Vr | 40 µA @ 60 V |
|---|---|
| Capacitance @ Vr, F | 20pF @ 10V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | DCSP1006010-N1 |
| Operating Temperature - Junction | 150°C (Max) |
