Name: AN8016NSH-E1
Brand: Panasonic Electronic Components
SKU: AN8016NSH-E1
Availability: InStock

REF: AN8016NSH-E1 Panasonic Electronic Components

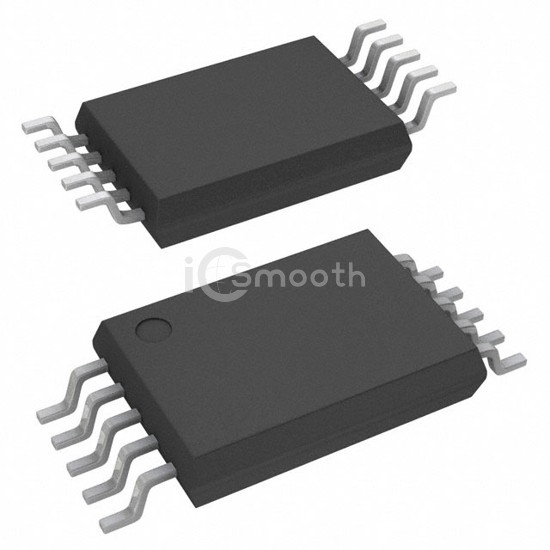

AN8016NSH-E1

IC REG CTRLR BOOST 10-SSOP

AN8016NSH-E1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Panasonic Electronic Components. IC REG CTRLR BOOST 10-SSOP. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.8V ~ 14V, package / case 10-FSOP (0.169", 4.30mm Width).

Datasheet Request a Quote

In Stock: 8,803

Specifications

18 parameters

Product Status	Obsolete
Output Type	Transistor Driver
Function	Step-Up
Output Configuration	Positive
Topology	Boost
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	1.8V ~ 14V
Frequency - Switching	2kHz ~ 1MHz

Duty Cycle (Max)	80%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Enable, Soft Start
Operating Temperature	-30°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-FSOP (0.169", 4.30mm Width)
Supplier Device Package	10-SSOP
