Name: AN8013SH-E1
Brand: Panasonic Electronic Components
SKU: AN8013SH-E1
Availability: InStock

REF: AN8013SH-E1 Panasonic Electronic Components

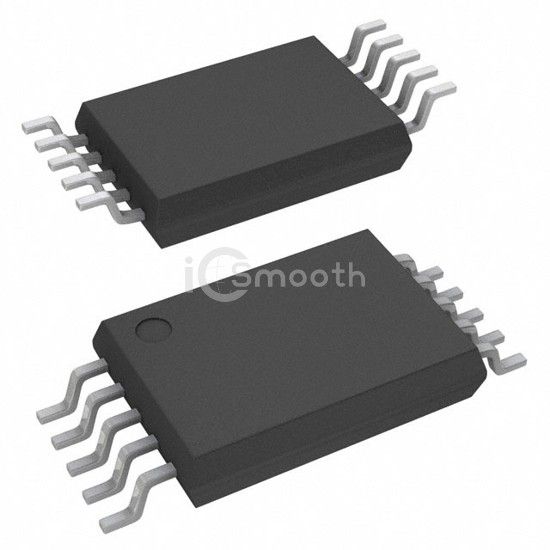

AN8013SH-E1

IC REG BUCK BST ADJ 50MA 10SSOP

AN8013SH-E1 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Panasonic Electronic Components. IC REG BUCK BST ADJ 50MA 10SSOP. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), package / case 10-FSOP (0.169", 4.30mm Width), current - output 50mA.

Datasheet Request a Quote

In Stock: 4,639

Specifications

17 parameters

Product Status	Obsolete
Function	Step-Up, Step-Down
Output Configuration	Positive
Topology	Buck, Boost
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3.6V
Voltage - Input (Max)	34V
Voltage - Output (Min/Fixed)	3.6V

Voltage - Output (Max)	34V
Current - Output	50mA
Frequency - Switching	20kHz ~ 500kHz
Synchronous Rectifier	No
Operating Temperature	-30°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-FSOP (0.169", 4.30mm Width)
Supplier Device Package	10-SSOP
