Name: AN7705SP
Brand: Panasonic Electronic Components
SKU: AN7705SP
Availability: InStock

REF: AN7705SP Panasonic Electronic Components

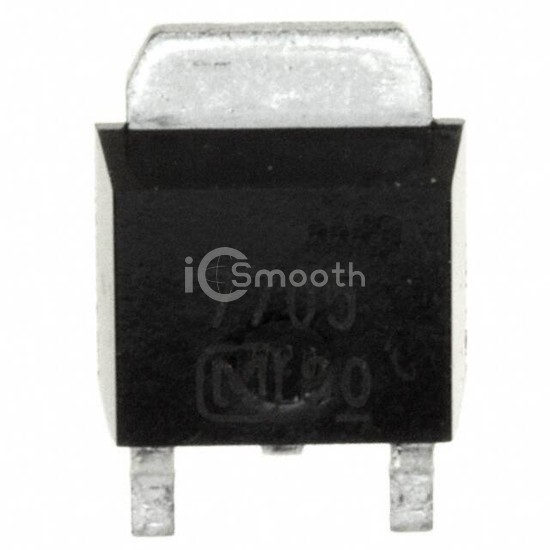

AN7705SP

IC REG LINEAR 5V 1.2A SP3SUA

AN7705SP is a PMIC - Voltage Regulators - Linear manufactured by Panasonic Electronic Components. IC REG LINEAR 5V 1.2A SP3SUA. Key specifications: mounting type Surface Mount, operating temperature 25°C ~ 125°C, package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - output 1.2A.

Datasheet Request a Quote

In Stock: 8,610

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	16V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-
Current - Output	1.2A

Current - Quiescent (Iq)	5 mA
Current - Supply (Max)	-
PSRR	70dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	25°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	SP-3SUA
