AN5870K

In Stock: 4,798
AN5870K - Panasonic Electronic Components - Interface - Analog Switches - Special Purpose
REF: AN5870K Panasonic Electronic Components

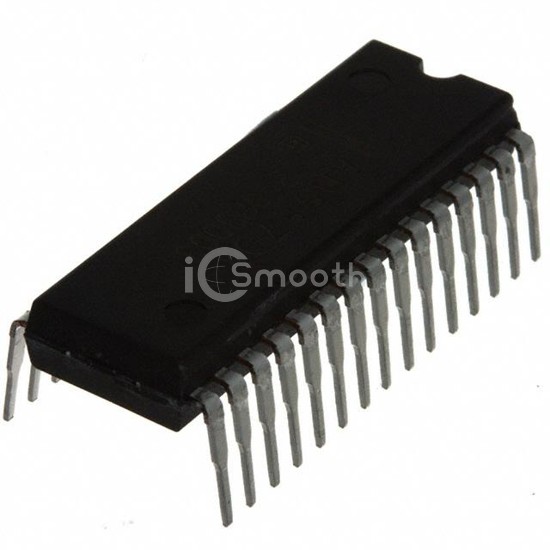

AN5870K

Panasonic Electronic Components

IC SWITCH VIDEO RGB 2:1 30SDIP

AN5870K is a Interface - Analog Switches - Special Purpose manufactured by Panasonic Electronic Components. IC SWITCH VIDEO RGB 2:1 30SDIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 70°C (TA), package / case 30-SDIP (0.400", 10.16mm).

Datasheet Request a Quote

In Stock: 4,798

Specifications

14 parameters
Product StatusObsolete
ApplicationsVideo
Multiplexer/Demultiplexer Circuit2:1
Switch Circuit-
Number of Channels4
On-State Resistance (Max)-
Voltage - Supply, Single (V+)4.5V ~ 5.25, 10.5V ~ 12.6V
Voltage - Supply, Dual (V±)-
-3db Bandwidth-
FeaturesRGB
Operating Temperature-20°C ~ 70°C (TA)
Mounting TypeThrough Hole
Package / Case30-SDIP (0.400", 10.16mm)
Supplier Device Package30-SDIP
