Name: AN44071A-VF
Brand: Panasonic Electronic Components
SKU: AN44071A-VF
Availability: InStock

REF: AN44071A-VF Panasonic Electronic Components

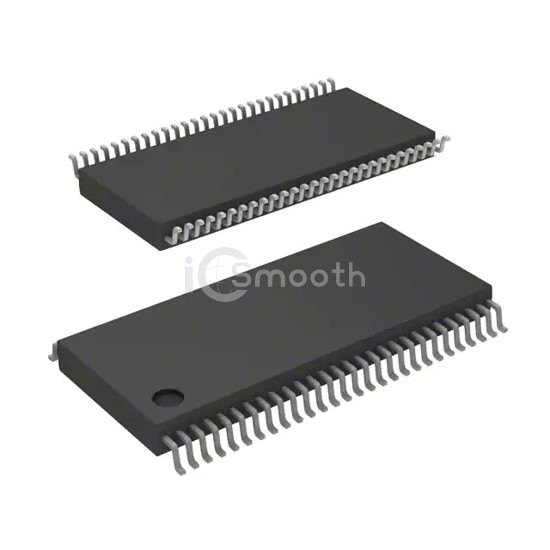

AN44071A-VF

IC MTR DRV BIPOLAR 10-34V 56HSOP

AN44071A-VF is a PMIC - Motor Drivers, Controllers manufactured by Panasonic Electronic Components. IC MTR DRV BIPOLAR 10-34V 56HSOP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 120°C (TJ), voltage - supply 10V ~ 34V, package / case 56-TFSOP (0.240", 6.10mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 2,042

Specifications

16 parameters

Product Status	Obsolete
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (8)
Interface	Parallel, PWM
Technology	Power MOSFET
Step Resolution	1, 1/2, 1/8, 1/16, 1/32

Applications	General Purpose
Current - Output	1A, 1.7A
Voltage - Supply	10V ~ 34V
Voltage - Load	10V ~ 34V
Operating Temperature	-20°C ~ 120°C (TJ)
Mounting Type	Surface Mount
Package / Case	56-TFSOP (0.240", 6.10mm Width) Exposed Pad
Supplier Device Package	56-HSOP
