Name: AN1201SM-TXL
Brand: Panasonic Electronic Components
SKU: AN1201SM-TXL
Availability: InStock

REF: AN1201SM-TXL Panasonic Electronic Components

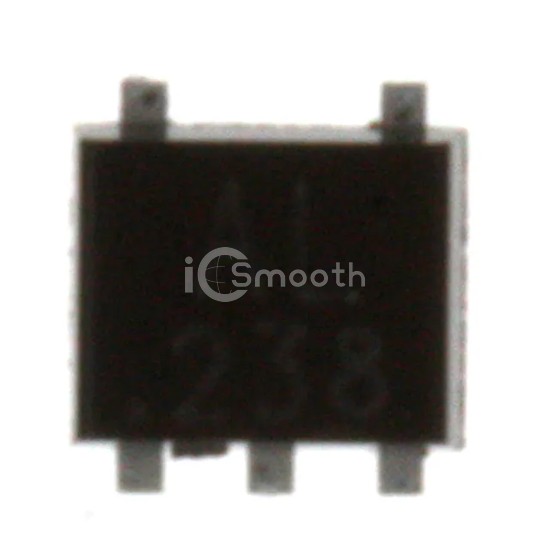

AN1201SM-TXL

IC REG CHARG PUMP INV SSMINI5-F2

AN1201SM-TXL is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Panasonic Electronic Components. IC REG CHARG PUMP INV SSMINI5-F2. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), package / case 6-SMD (5 Leads), Flat Lead, output type Fixed.

Datasheet Request a Quote

In Stock: 4,514

Specifications

17 parameters

Product Status	Obsolete
Function	Ratiometric
Output Configuration	Negative
Topology	Charge Pump
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	2V
Voltage - Input (Max)	3V
Voltage - Output (Min/Fixed)	-Vin

Voltage - Output (Max)	-
Current - Output	-
Frequency - Switching	125kHz
Synchronous Rectifier	No
Operating Temperature	-30°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-SMD (5 Leads), Flat Lead
Supplier Device Package	SMINI-5DA
