2SD235800A

In Stock: 8,072

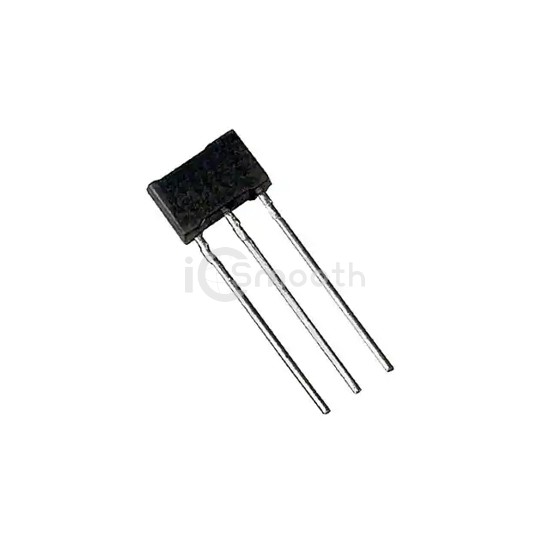

2SD235800A - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SD235800A Panasonic Electronic Components
2SD235800A

Panasonic Electronic Components

TRANS NPN 10V 1A MT-2

2SD235800A is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 10V 1A MT-2. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 3-SIP, current - collector (ic) (max) 1 A.

Datasheet Request a Quote

In Stock: 8,072

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)10 V
Vce Saturation (Max) @ Ib, Ic150mV @ 20mA, 500mA
Current - Collector Cutoff (Max)1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 100mA, 2V
Power - Max1 W
Frequency - Transition120MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageMT-2-A1
