2SD23210RA

In Stock: 6,617

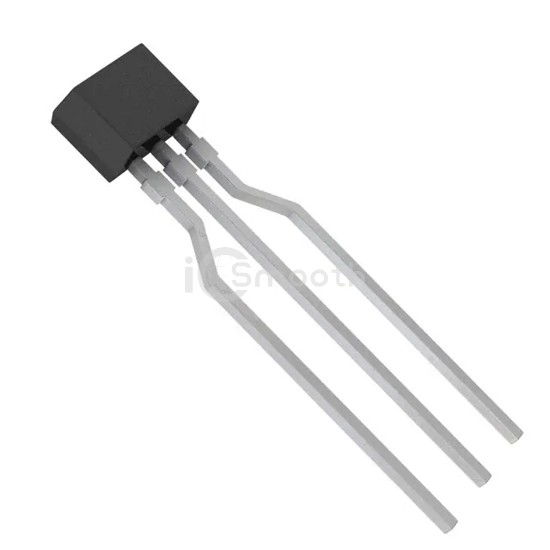

2SD23210RA - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SD23210RA Panasonic Electronic Components
2SD23210RA

Panasonic Electronic Components

TRANS NPN 20V 5A NS-B1

2SD23210RA is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 20V 5A NS-B1. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 3-SIP, current - collector (ic) (max) 5 A.

Datasheet Request a Quote

In Stock: 6,617

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)5 A
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic1V @ 100mA, 3A
Current - Collector Cutoff (Max)1µA
DC Current Gain (hFE) (Min) @ Ic, Vce340 @ 500mA, 2V
Power - Max400 mW
Frequency - Transition150MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageNS-B1
