2SD225900A

In Stock: 3,062

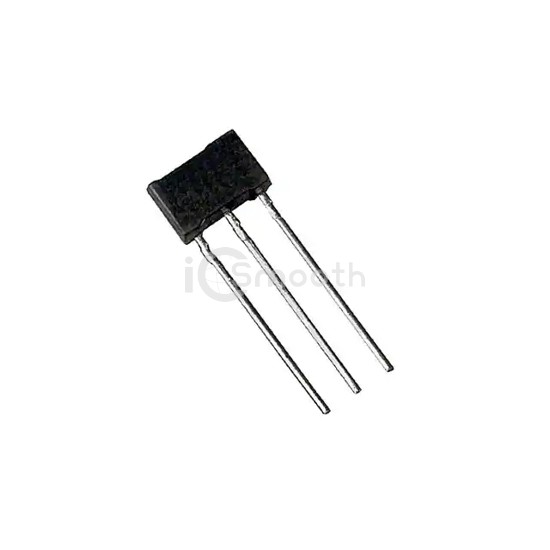

2SD225900A - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SD225900A Panasonic Electronic Components
2SD225900A

Panasonic Electronic Components

TRANS NPN 20V 0.7A MT-2

2SD225900A is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 20V 0.7A MT-2. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 3-SIP, current - collector (ic) (max) 700 mA.

Datasheet Request a Quote

In Stock: 3,062

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)700 mA
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic400mV @ 50mA, 500mA
Current - Collector Cutoff (Max)10µA
DC Current Gain (hFE) (Min) @ Ic, Vce1000 @ 150mA, 10V
Power - Max1 W
Frequency - Transition55MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageMT-2-A1
