2SD22420PA

In Stock: 9,119

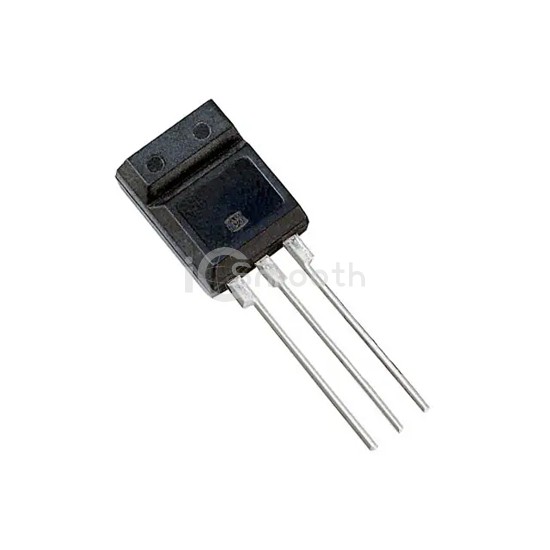

2SD22420PA - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SD22420PA Panasonic Electronic Components
2SD22420PA

Panasonic Electronic Components

TRANS NPN DARL 60V 4A MT-4

2SD22420PA is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN DARL 60V 4A MT-4. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 3-SIP, current - collector (ic) (max) 4 A.

Datasheet Request a Quote

In Stock: 9,119

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)4 A
Voltage - Collector Emitter Breakdown (Max)60 V
Vce Saturation (Max) @ Ib, Ic4V @ 20mA, 5A
Current - Collector Cutoff (Max)100µA
DC Current Gain (hFE) (Min) @ Ic, Vce4000 @ 3A, 3V
Power - Max2 W
Frequency - Transition20MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageMT-4-A1
