2SD22250RA

In Stock: 4,333

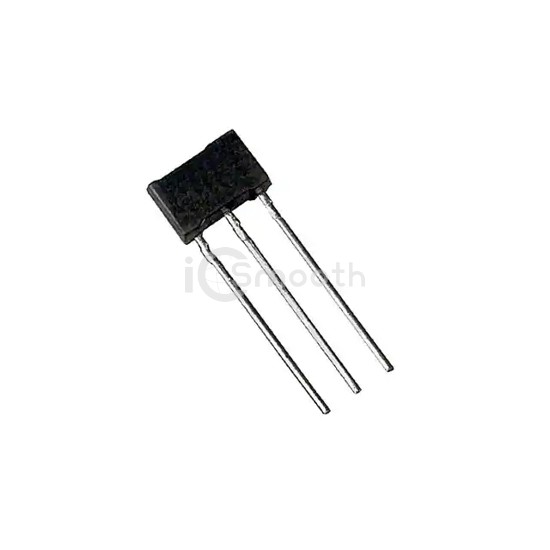

2SD22250RA - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SD22250RA Panasonic Electronic Components
2SD22250RA

Panasonic Electronic Components

TRANS NPN 120V 0.5A MT-2

2SD22250RA is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 120V 0.5A MT-2. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 3-SIP, current - collector (ic) (max) 500 mA.

Datasheet Request a Quote

In Stock: 4,333

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)500 mA
Voltage - Collector Emitter Breakdown (Max)120 V
Vce Saturation (Max) @ Ib, Ic1V @ 30mA, 300mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce130 @ 150mA, 10V
Power - Max1 W
Frequency - Transition200MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageMT-2-A1
