2SD21780SA

In Stock: 8,596

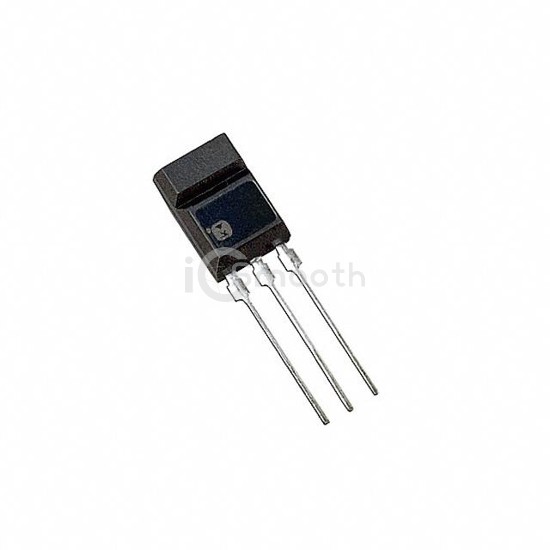

2SD21780SA - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SD21780SA Panasonic Electronic Components
2SD21780SA

Panasonic Electronic Components

TRANS NPN 50V 2A MT-3

2SD21780SA is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 50V 2A MT-3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 3-SIP, current - collector (ic) (max) 2 A.

Datasheet Request a Quote

In Stock: 8,596

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)2 A
Voltage - Collector Emitter Breakdown (Max)50 V
Vce Saturation (Max) @ Ib, Ic300mV @ 50mA, 1A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce170 @ 200mA, 2V
Power - Max1.5 W
Frequency - Transition150MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageMT-3-A1
