2SD21390PA

In Stock: 2,566

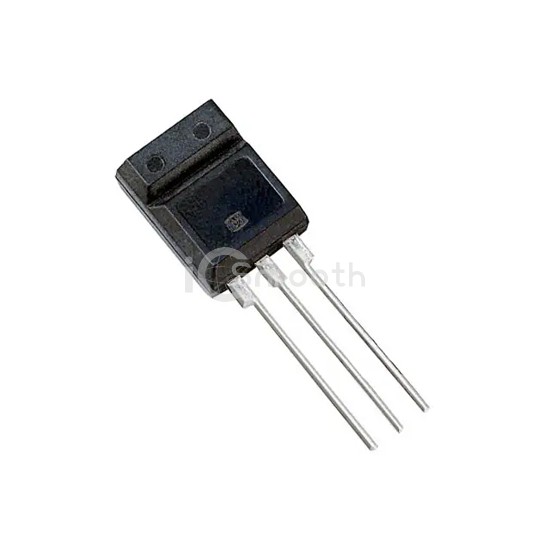

2SD21390PA - Panasonic Electronic Components - Transistors - Bipolar (BJT) - Single
REF: 2SD21390PA Panasonic Electronic Components
2SD21390PA

Panasonic Electronic Components

TRANS NPN 60V 3A MT-4

2SD21390PA is a Transistors - Bipolar (BJT) - Single manufactured by Panasonic Electronic Components. TRANS NPN 60V 3A MT-4. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case 3-SIP, current - collector (ic) (max) 3 A.

Datasheet Request a Quote

In Stock: 2,566

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)3 A
Voltage - Collector Emitter Breakdown (Max)60 V
Vce Saturation (Max) @ Ib, Ic1V @ 50mA, 2A
Current - Collector Cutoff (Max)100µA
DC Current Gain (hFE) (Min) @ Ic, Vce800 @ 500mA, 4V
Power - Max2 W
Frequency - Transition50MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / Case3-SIP
Supplier Device PackageMT-4-A1
